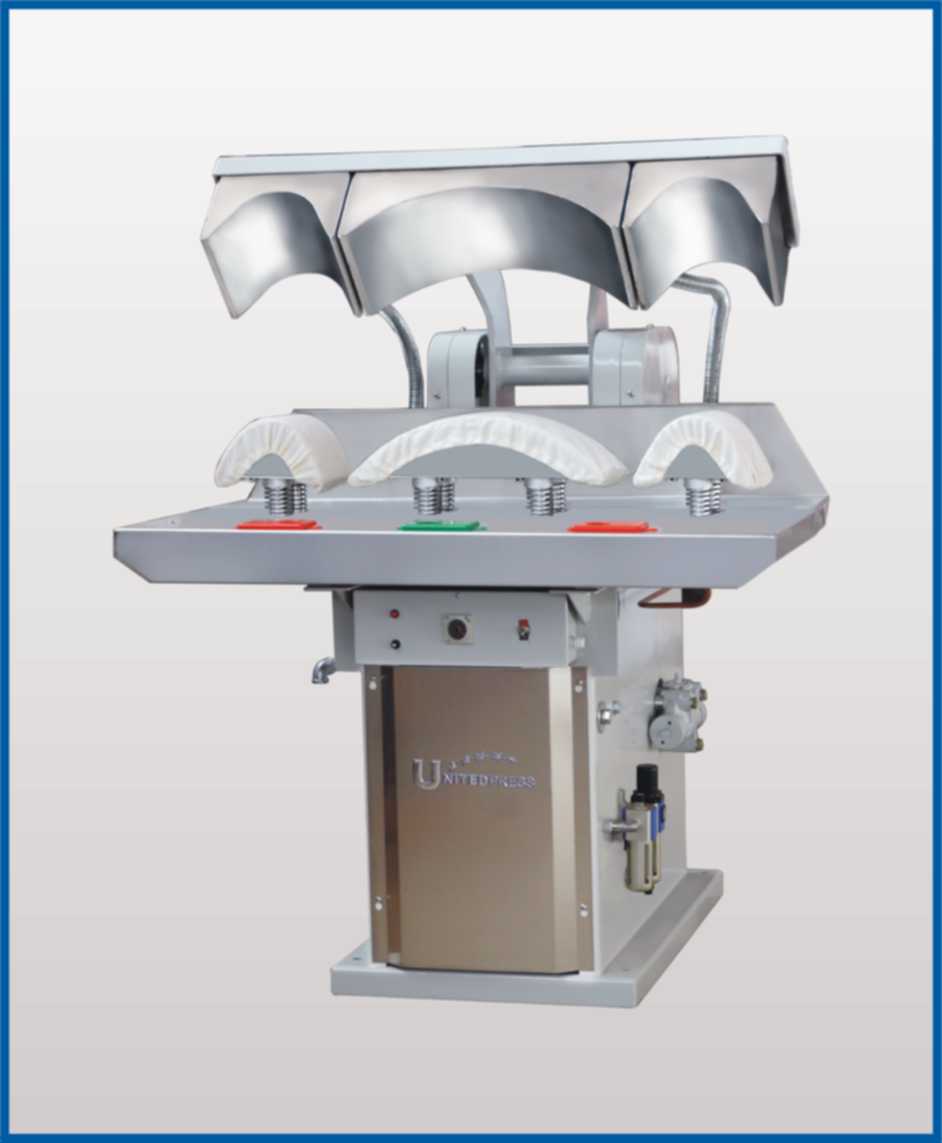

UC16D (UHC-16D) Collar- Cuff and Yoke Press (Double)
UC16D (UHC-16D) Collar- Cuff and Yoke Press (Double) UC16D (UHC-16D) Collar- Cuff and Yoke Press (Double)

For the discriminating cleaner who seeks the best quality possible, UHD-16D delivers consisten high quality finishes every cycle.

This press finishes double the shirt collar and cuffs in a single operation and the yoke in a second operation.

Built on heavy duty UA frame with cast -iron "Y" piece assures years of trouble free production.

  • Standard stainless steel table and panel.
  • Aluminum cylinders.
  • Timer control, alarm protected
  • Two hand operation
  • Smooth and steady operation



SPECIFICATIONS

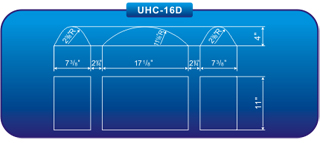

Height of buck-padded  41"
 Lenght of buck-unpadded  44"
 Width of buck-unpadded  11"
 Width of machine  45"
 Depth of machine  44"
  Steam inlet  1/2" NPT
 Steam outlet  1/2" NPT
 Vacuum outlet  1 1/4" NPT
 Voltage/Hertz/Phase  AC 24V
 Steam pressure  125 PSI
 Air pressure  80 PSI
 Net weight  850 LBS
