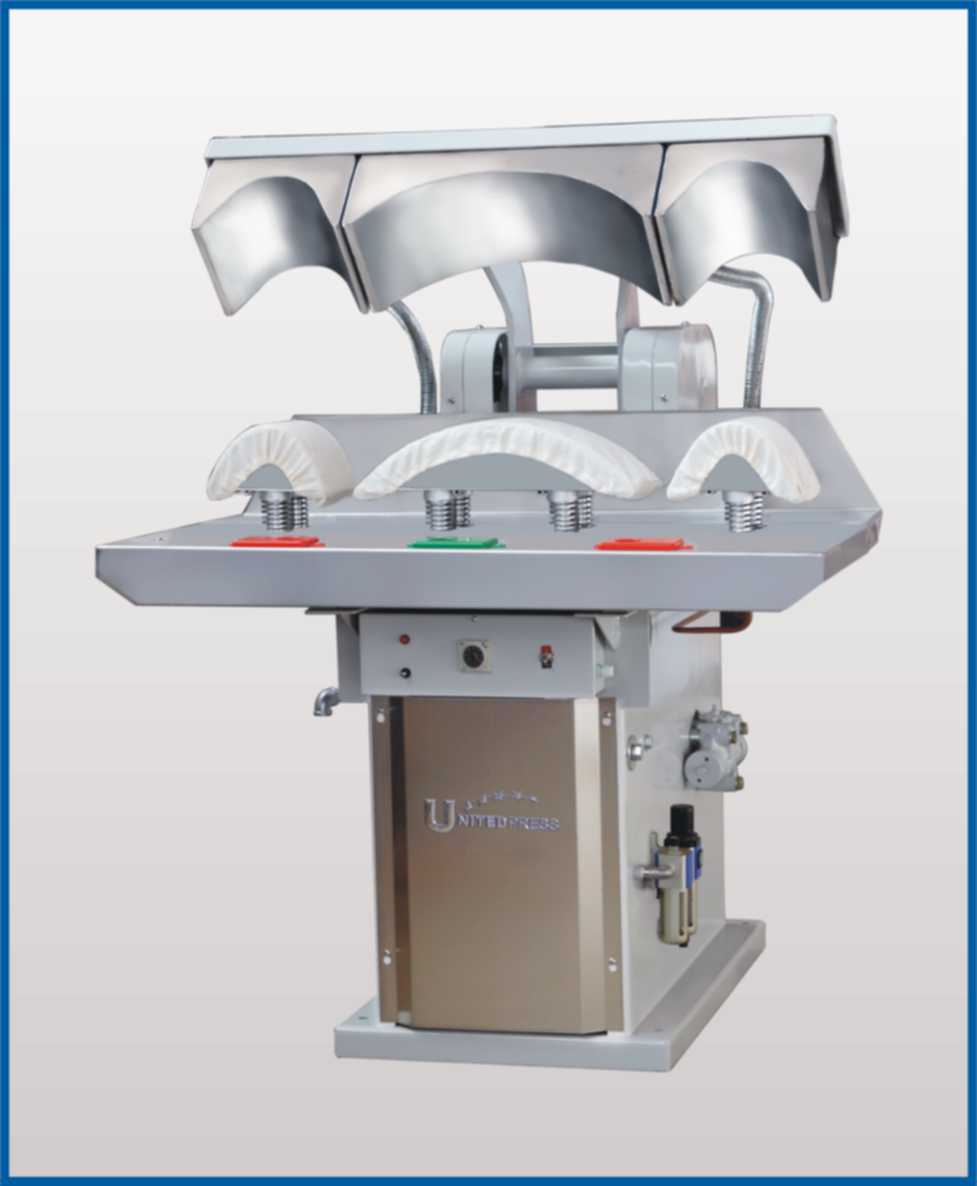

UC8 (UHC-8) Collar-Cuff and Yoke Press
UC8 (UHC-8) Collar-Cuff and Yoke Press UC8 (UHC-8) Collar-Cuff and Yoke Press

This ease to use press finishes the shirt collar and two cuff in a single operation. and the yoke in a second operation.

The unit boasts many of the same high-perfomance features found in the lay-down bosom and body press. Built on heavy duty UA frame with cast iron "Y" piece assures years of trouble-free prduction.

Collar cuff press comprise one part of a unique shirt system designes specifically to help you increase productivity while saving your operating costs.

  • Standard stainless steel table and panel.
  • Aluminum cylinders.
  • Timer operated.
  • Two hand operation.
  • Smooth and steady operation.
SPECIFICATIONS
 Height of buck-padded  41"
Lenght of buck-unpadded  44"
 Width of buck-unpadded  11"
 Width of machine  45"
 Depth of machine  44"
 Steam inlet  1/2" NPT
 Steam outlet  1/2" NPT
 Vacuum outlet  1 1/4" NPT
 Voltage/Hertz/Phase  AC 24V
 Steam pressure  125 PSI
 Air pressure  80 PSI
  Net weight  838 LBS
